EC-UU004-5E-PVC-GY

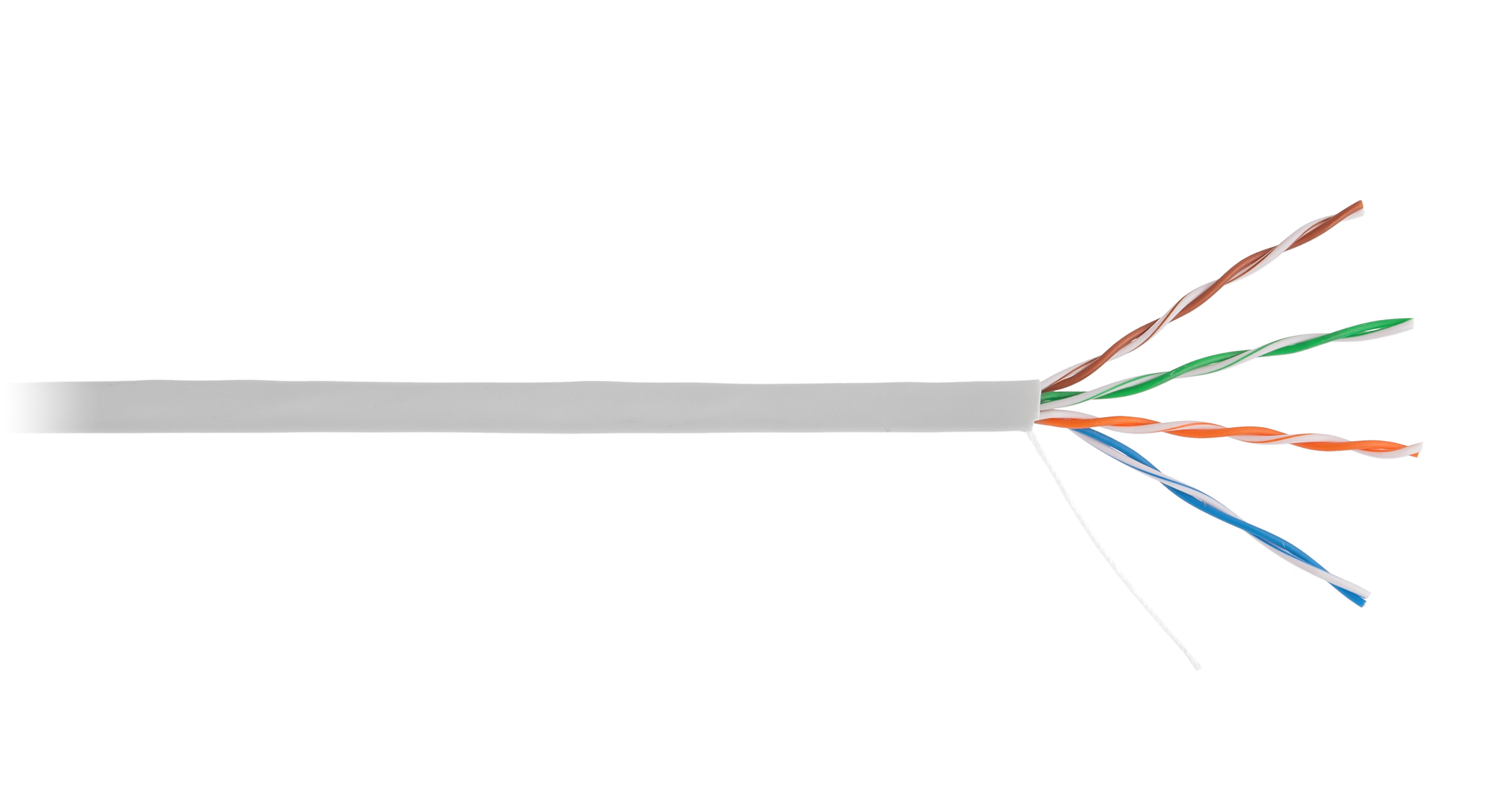

Cable U/UTP 4 pair 0.47mm, Cat.5e, indoor, PVC, solid, grey, 305m
Content
Four-pair lan cable 5e category is used for organizing high-speed cable segments with data transfer rates up to 1Gbit/s. It also can be used for transmitting analog information.
Unshielded cable EC-UU004-5E-PVC-GY has 4 pairs of twisted copper conductors, corresponds to 5e category and is intended for indoor installation.
Supplied in cardboard boxes of 305 meters. For usability and transportation safety two individual boxes are merged in one transport cardboard box.
Characteristics
| Category |
5e |
| Bandwidth, MHz |
100 |
| Construction |
U/UTP |
| Number of twisted pairs |
4 |
| Conductors material |
Bare copper |
| Conductors type |
Solid |
| Diameter of wire |
0,47±0,005 |
| Conductors insulation material |
HDPE |
| Conductors insulation thickness, mm |
0,19±0,02 |
| Conductors insulation outer diameter, mm |
0,85±0,05 |
| Outer jacket material, mm |
PVC |
| Usage |
Indoor |
| Jacket thickness, mm |
0,5±0,05 |
| Jacket outer diameter, мм |
5±0,2 |
| Jacket color |
Grey |
| Protective film |
- |
| Rip cord |
+ |
| Mass density per unit lenght, kg/km |
26,2 |
| Bending radius without load, D |
≥8 |
| Bending radius with load, D |
≥4 |
| Tensile strength, H |
≤80 |
| Burst strength, H |
≤400 |
| Impedance, Ом |
100±15 |
| Max. conductor resistance (DC), Ω/km |
115 |
| Standard compliance |
Meets the standartd requirements: |
| Application supporters |
10BASE-T, 100BASE-TX, 100BASE-T4, 1000BASE-T, ATM-25, ATM-51, ATM-155, 100VG-AnyLan, TR-4, TR-16 Active, TR-16 Passive |
| Temperature ranges °C |
Storage from -20 to +60. Installation form 0 to +50. Exploitation form -20 to +60 |
| Length, m |
305 |
| Package |
Individual - cardboard box / transport cardboard box (2 individual boxes) |
| Package sizes (individual/transport), mm |
200x350x350 / 420х370х370 |
| Warranty |
1 year |
